PSVANE

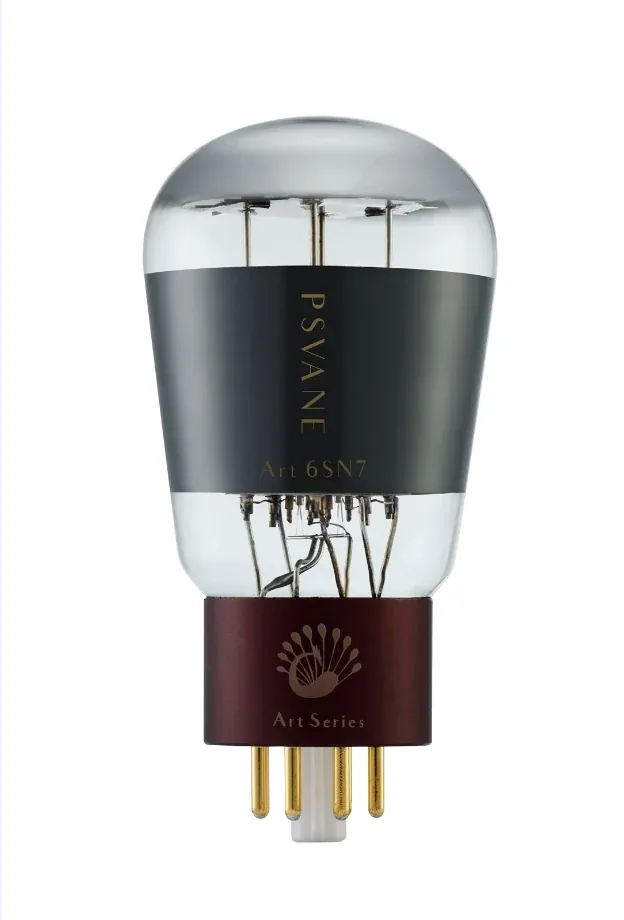

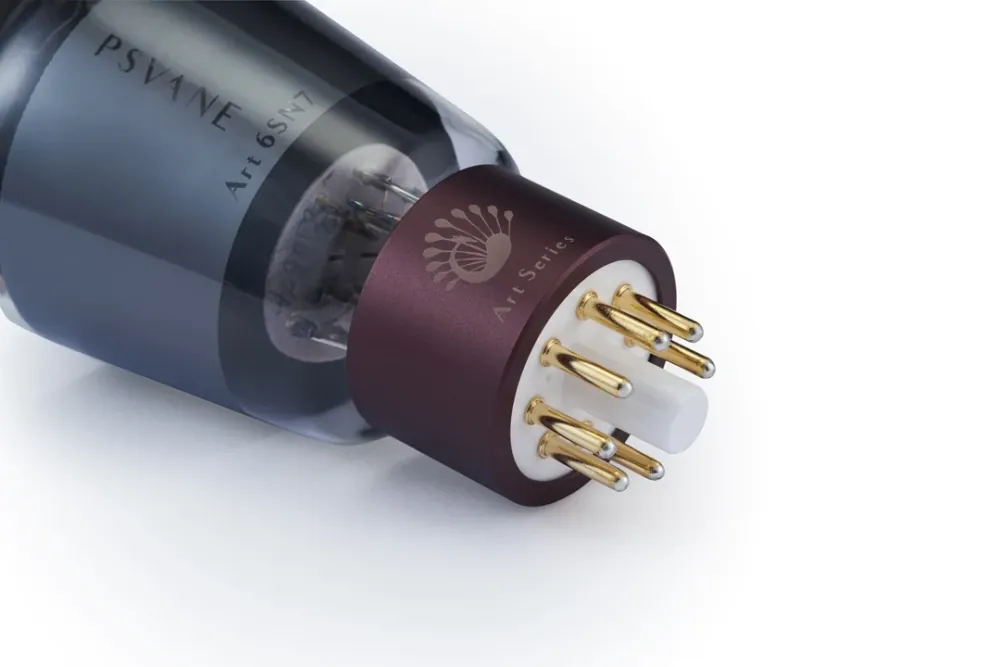

Art 6SN7
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage
UH ........................................................... 6.3 V
IH ........................................................... 0.6 A
UH ........................................................... 6.3 V
IH ........................................................... 0.6 A
Maximum Ratings
Class A1 Amplification (per side)
Ua ......................................................... 450 V
Ik .......................................................... 20 mA
Pa ......................................................... 5 W
Pa (No.1 + No.2) ................................... 7.5 W
Rg ......................................................... 1 MΩ
Uhk ....................................................... ±100 V
Ua ......................................................... 450 V
Ik .......................................................... 20 mA
Pa ......................................................... 5 W
Pa (No.1 + No.2) ................................... 7.5 W
Rg ......................................................... 1 MΩ
Uhk ....................................................... ±100 V
Static Parameters
Ua ........................................................... 90 250 V
Ug ........................................................... 0 -8 V
Ia ............................................................ 10 9 mA
Gm ........................................................... 3 2.6 mA/V
Ua ........................................................... 90 250 V
Ug ........................................................... 0 -8 V
Ia ............................................................ 10 9 mA
Gm ........................................................... 3 2.6 mA/V
Ri ............................................................. 6.7 7.7 kΩ
μ ............................................................... 20 20
Ia (when Ug = -12.5V) ................................... - 1.3 mA
Ug (when Ia = -10uA) ................................... -7 -18 V
μ ............................................................... 20 20
Ia (when Ug = -12.5V) ................................... - 1.3 mA
Ug (when Ia = -10uA) ................................... -7 -18 V
