PSVANE

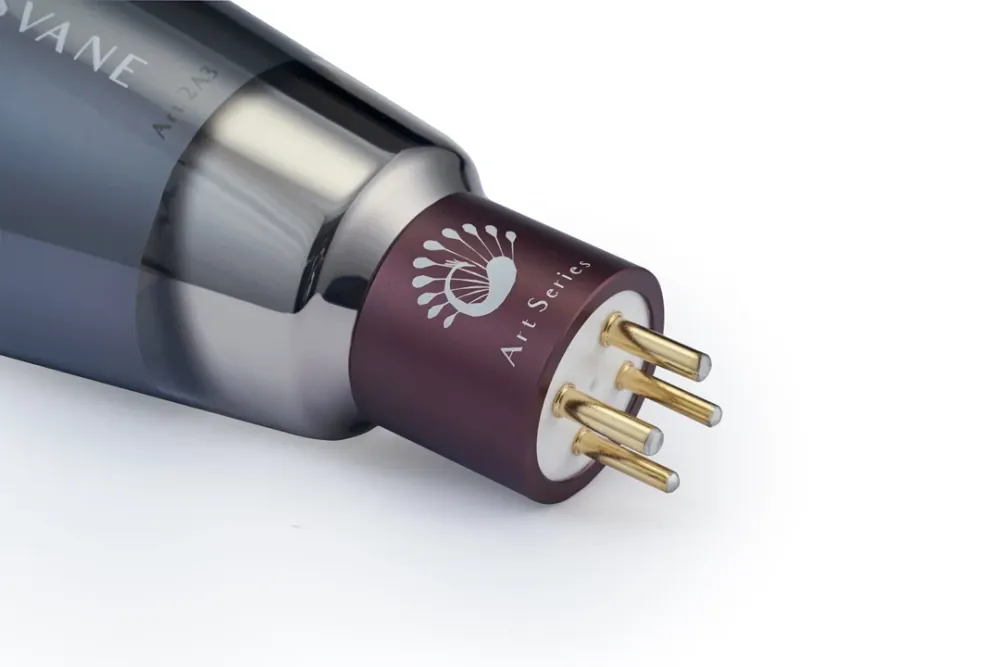

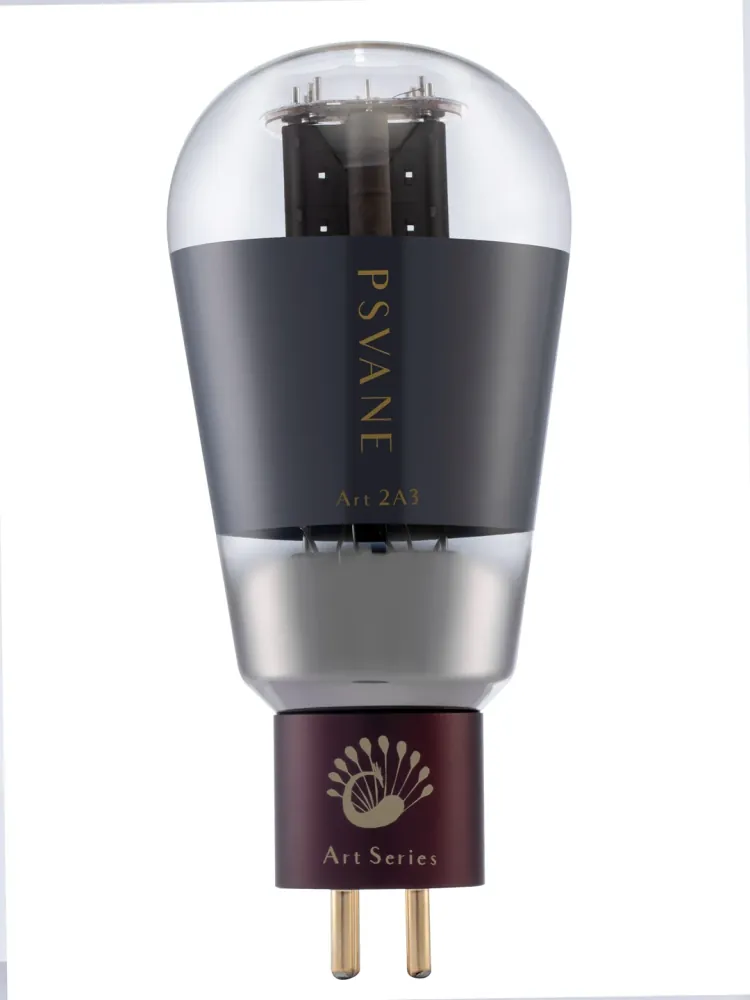

Art 2A3
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage
Uf ..................................................... 2.5 V
If ..................................................... 2.5 A
Uf ..................................................... 2.5 V
If ..................................................... 2.5 A
Maximum Ratings
Ua ..................................................... 300 V
Pa ..................................................... 25 W
Ua ..................................................... 300 V
Pa ..................................................... 25 W
Inter-electrode Capacitance
Input Capacitance ................................... 7.5 pF
Output Capacitance .................................. 5.5 pF
Cross Capacitance ................................... 16.5 pF
Input Capacitance ................................... 7.5 pF
Output Capacitance .................................. 5.5 pF
Cross Capacitance ................................... 16.5 pF
Static Parameters
Ua ...................................................... 250 V
Ug ...................................................... -45 V
Ia ....................................................... 60 mA
Gm ..................................................... 5.25 mA/V
ri ....................................................... 0.8 kΩ
μ ....................................................... 4.2
Pout .................................................... 3.5 W
Ua ...................................................... 250 V
Ug ...................................................... -45 V
Ia ....................................................... 60 mA
Gm ..................................................... 5.25 mA/V
ri ....................................................... 0.8 kΩ
μ ....................................................... 4.2
Pout .................................................... 3.5 W
