PSVANE

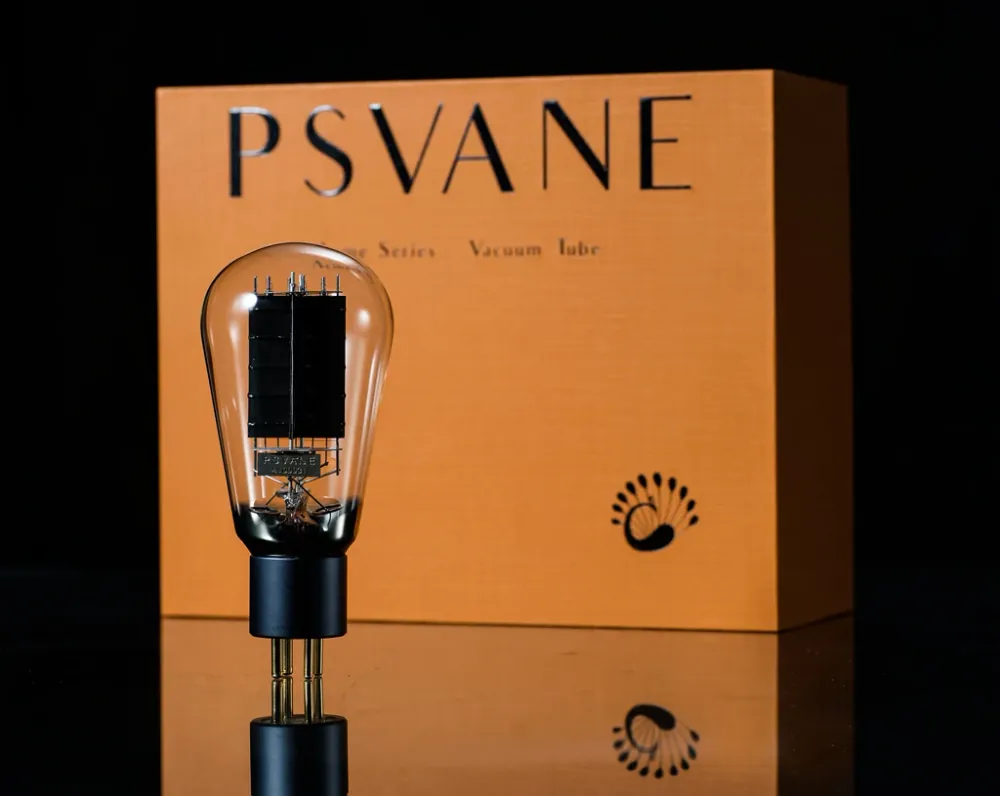

Acme 300B
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage
Uf ............................................................................................. 5 V
If ............................................................................................. 1.2 A
Uf ............................................................................................. 5 V
If ............................................................................................. 1.2 A
Maximum Ratings
Anode Voltage ............................................................................ 480 V
Anode Dissipation Power ........................................................... 40 W
Anode Voltage ............................................................................ 480 V
Anode Dissipation Power ........................................................... 40 W
Cathode Current
Self-bias ..................................................................................... 100 mA
Fixed Bias ................................................................................... 70 mA
Self-bias ..................................................................................... 100 mA
Fixed Bias ................................................................................... 70 mA
Inter-electrode Capacitance
Input Capacitance ........................................................................ 9 pF
Output Capacitance .................................................................... 4.3 pF
Cross Capacitance ........................................................................ 15 pF
Input Capacitance ........................................................................ 9 pF
Output Capacitance .................................................................... 4.3 pF
Cross Capacitance ........................................................................ 15 pF
Static Parameters
Ua ............................................................................................ 300 V
Ug ............................................................................................ -60 V
Ia ............................................................................................. 60 mA
Gm ........................................................................................... 5.5 mA/V
Ri .............................................................................................. 0.7 kΩ
μ ................................................................................................ 3.85
Pout ........................................................................................... 6.6 W
Ua ............................................................................................ 300 V
Ug ............................................................................................ -60 V
Ia ............................................................................................. 60 mA
Gm ........................................................................................... 5.5 mA/V
Ri .............................................................................................. 0.7 kΩ
μ ................................................................................................ 3.85
Pout ........................................................................................... 6.6 W
