PSVANE

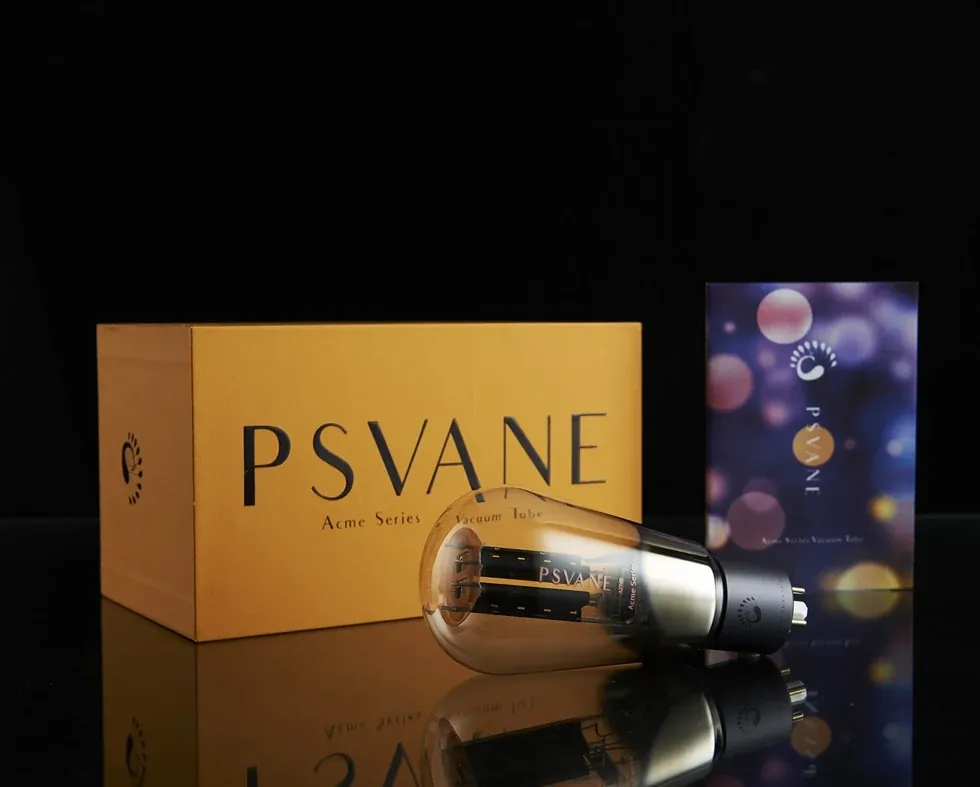

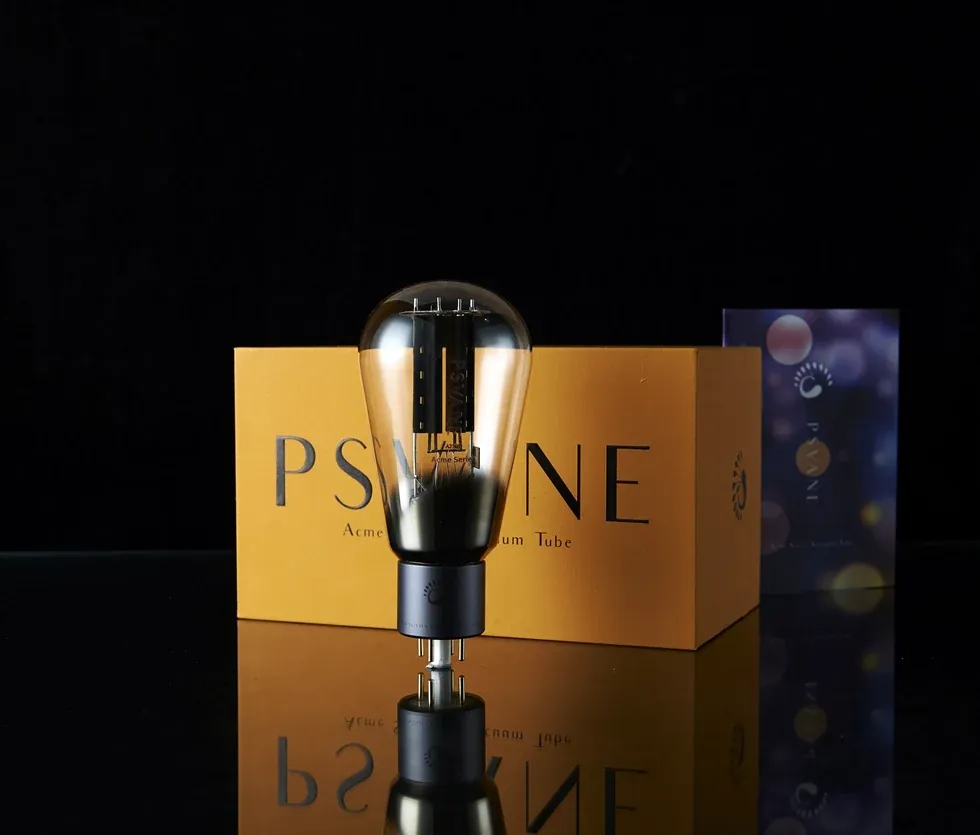

Acme 274B
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage
Uf ........................................................................................................ 5 V
If ........................................................................................................ 2 A
Uf ........................................................................................................ 5 V
If ........................................................................................................ 2 A
Maximum Ratings
Peak Anode Reverse Voltage ............................................................... 1550 V
Peak Anode Current ............................................................................. 750 mA
Peak Anode Reverse Voltage ............................................................... 1550 V
Peak Anode Current ............................................................................. 750 mA
Recommended Operating Conditions
Anode Supply Voltage ........................................................................ 2×500 V
Impedance per Arm .............................................................................. 75 Ω
Load Impedance .................................................................................. 2000 Ω
Filter Capacitor ....................................................................................... 4 μF
Rectifier Current ................................................................................... ≥220 mA
Anode Supply Voltage ........................................................................ 2×500 V
Impedance per Arm .............................................................................. 75 Ω
Load Impedance .................................................................................. 2000 Ω
Filter Capacitor ....................................................................................... 4 μF
Rectifier Current ................................................................................... ≥220 mA
