PSVANE

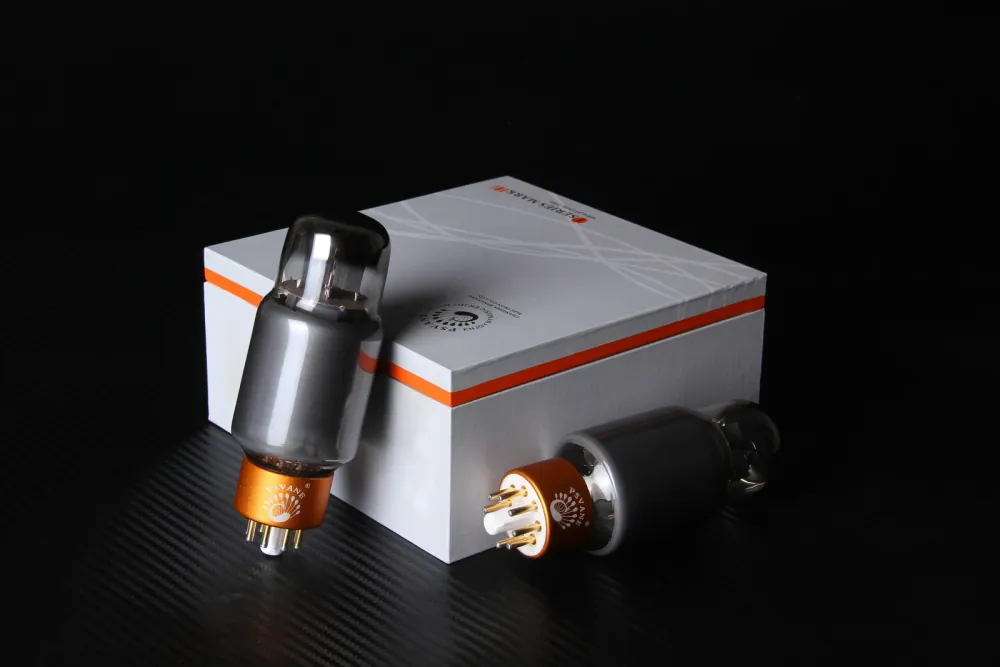

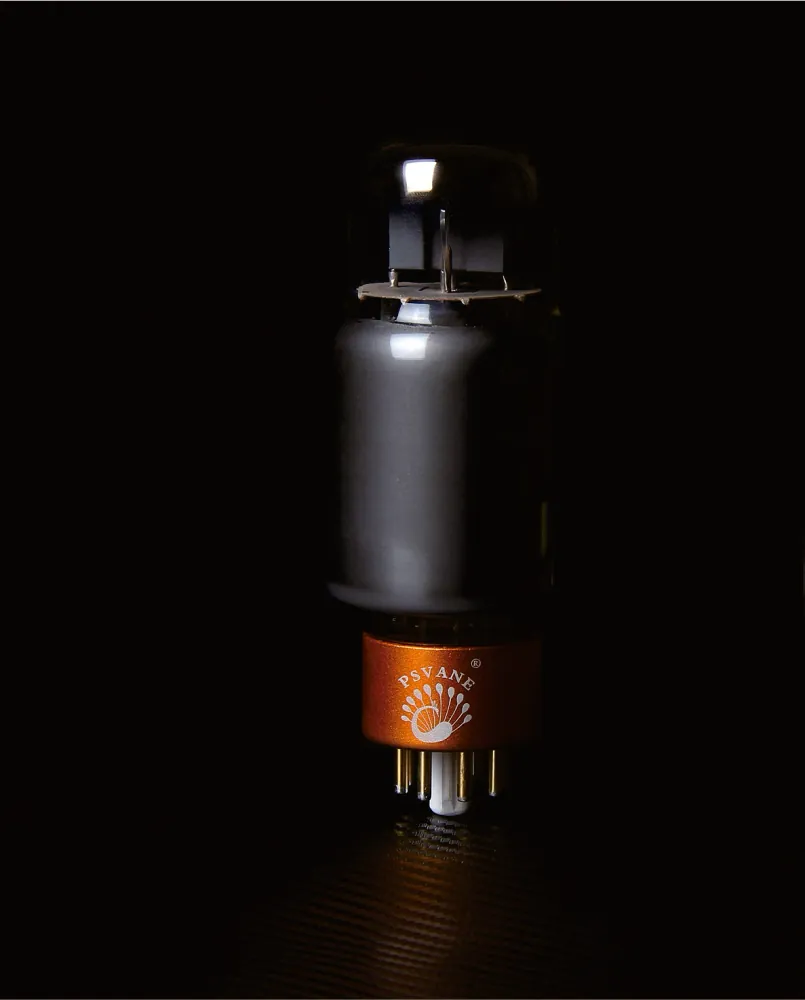

6CA7-TII
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Heater Voltage:
UH............................................................. 6.3 V
IH............................................................. 1.5 A
UH............................................................. 6.3 V
IH............................................................. 1.5 A
Static Parameters:
Ua (Anode Voltage).......................................... 250 V
Ug2 (Second Grid Voltage).................................. 250 V
Ug3 (Third Grid Voltage)................................... 0 V
Ug1 (First Grid Voltage)................................... -12.2 V
Ia (Anode Current).......................................... 100 mA
Gm (Transconductance).................................... 11 mA/V
ri (Internal Resistance).................................... 15 kΩ
μg1-g2 (Amplification Factor g1-g2)...................... 11
Ua (Anode Voltage).......................................... 250 V
Ug2 (Second Grid Voltage).................................. 250 V
Ug3 (Third Grid Voltage)................................... 0 V
Ug1 (First Grid Voltage)................................... -12.2 V
Ia (Anode Current).......................................... 100 mA
Gm (Transconductance).................................... 11 mA/V
ri (Internal Resistance).................................... 15 kΩ
μg1-g2 (Amplification Factor g1-g2)...................... 11
Maximum Ratings:
Anode Voltage................................................ 800 V
Second Grid Voltage........................................ 500 V
First Grid Voltage.......................................... -100 V
Anode Dissipation Power................................... 25 W
Second Grid Dissipation Power............................ 8 W
Cathode Current............................................ 150 mA
Anode Voltage................................................ 800 V
Second Grid Voltage........................................ 500 V
First Grid Voltage.......................................... -100 V
Anode Dissipation Power................................... 25 W
Second Grid Dissipation Power............................ 8 W
Cathode Current............................................ 150 mA
First Grid Resistance:
Self-Bias..................................................... 0.7 MΩ
Fixed Bias.................................................... 0.5 MΩ
Self-Bias..................................................... 0.7 MΩ
Fixed Bias.................................................... 0.5 MΩ
Heater-Cathode Voltage: ±100 V
Bulb Temperature: 250 °C
Bulb Temperature: 250 °C
Inter-electrode Capacitance:
Input Capacitance.......................................... 15.2 pF
Output Capacitance........................................ 8.4 pF
Cross Capacitance.......................................... 1.1 pF
First Grid-Heater Capacitance............................ 1.0 pF
Heater-Cathode Capacitance.............................. 10 pF
Input Capacitance.......................................... 15.2 pF
Output Capacitance........................................ 8.4 pF
Cross Capacitance.......................................... 1.1 pF
First Grid-Heater Capacitance............................ 1.0 pF
Heater-Cathode Capacitance.............................. 10 pF
