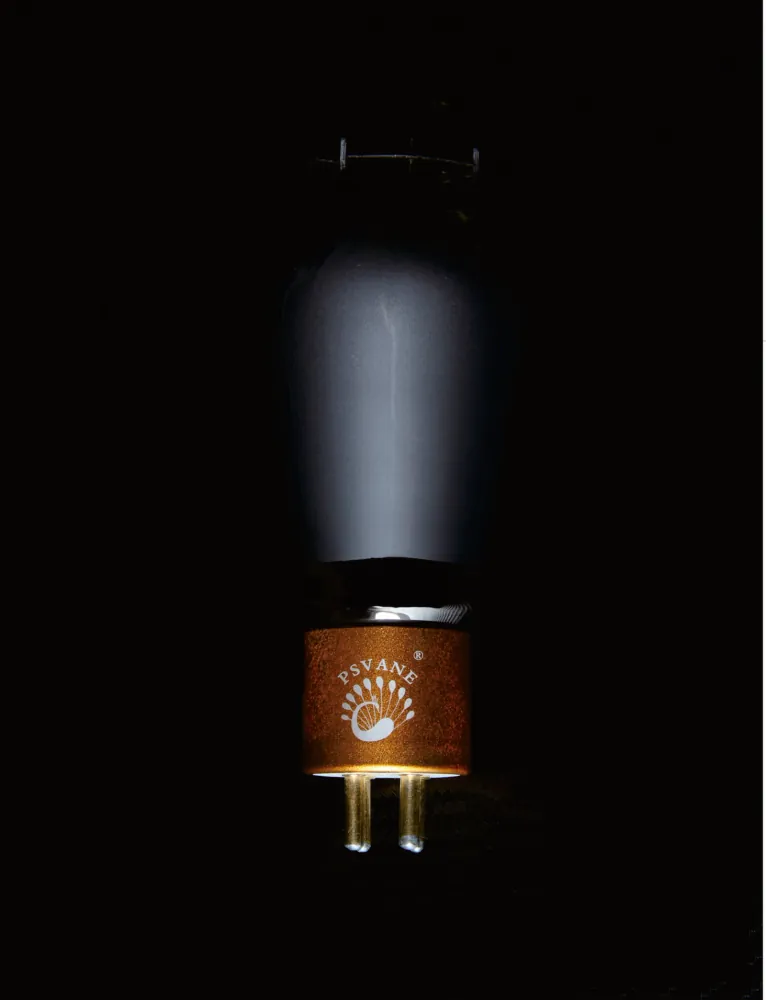

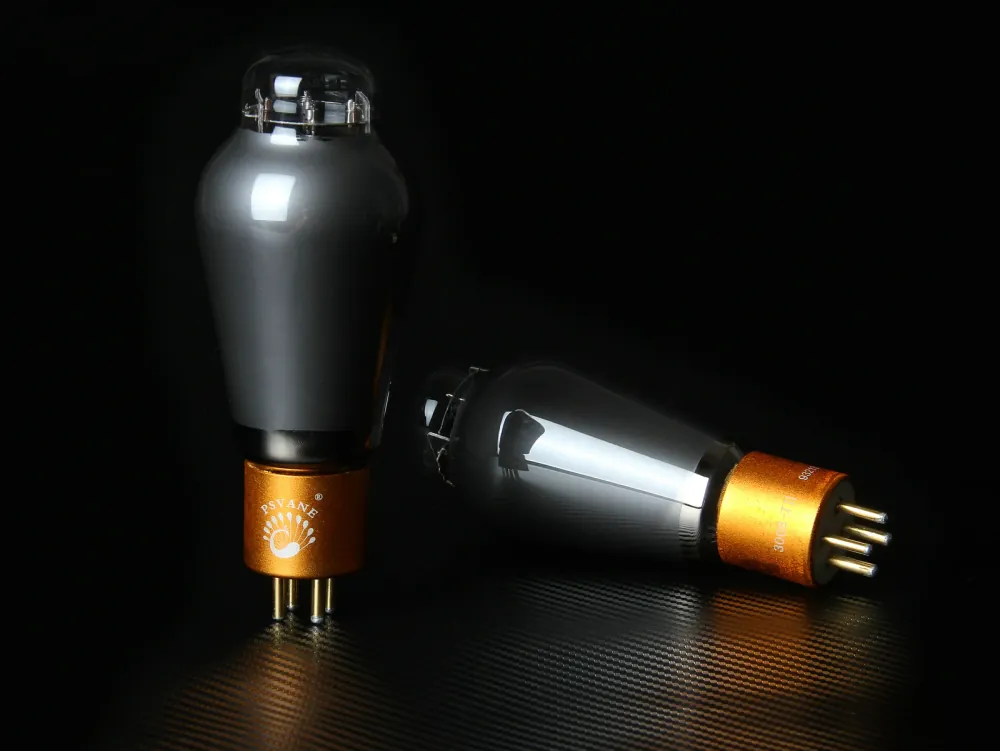

PSVANE
300B-TII
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage:
Uf........................................................... 5 V
If........................................................... 1.2 A
Uf........................................................... 5 V
If........................................................... 1.2 A
Maximum Ratings:
Anode Voltage................................................ 480 V
Anode Dissipation Power................................... 40 W
Anode Voltage................................................ 480 V
Anode Dissipation Power................................... 40 W
Cathode Current:
Self-Bias..................................................... 100 mA
Fixed Bias.................................................... 70 mA
Self-Bias..................................................... 100 mA
Fixed Bias.................................................... 70 mA
Inter-electrode Capacitance:
Input Capacitance.......................................... 9 pF
Output Capacitance........................................ 4.3 pF
Cross Capacitance.......................................... 15 pF
Input Capacitance.......................................... 9 pF
Output Capacitance........................................ 4.3 pF
Cross Capacitance.......................................... 15 pF
Static Parameters:
Ua (Anode Voltage).......................................... 300 V
Ug (Grid Voltage)........................................... -60 V
Ia (Anode Current).......................................... 60 mA
Gm (Transconductance).................................... 5.5 mA/V
Ri (Internal Resistance).................................... 0.7 KΩ
μ (Amplification Factor).................................. 3.85
Pout (Output Power)........................................ 6.6 W
Ua (Anode Voltage).......................................... 300 V
Ug (Grid Voltage)........................................... -60 V
Ia (Anode Current).......................................... 60 mA
Gm (Transconductance).................................... 5.5 mA/V
Ri (Internal Resistance).................................... 0.7 KΩ
μ (Amplification Factor).................................. 3.85
Pout (Output Power)........................................ 6.6 W
