PSVANE

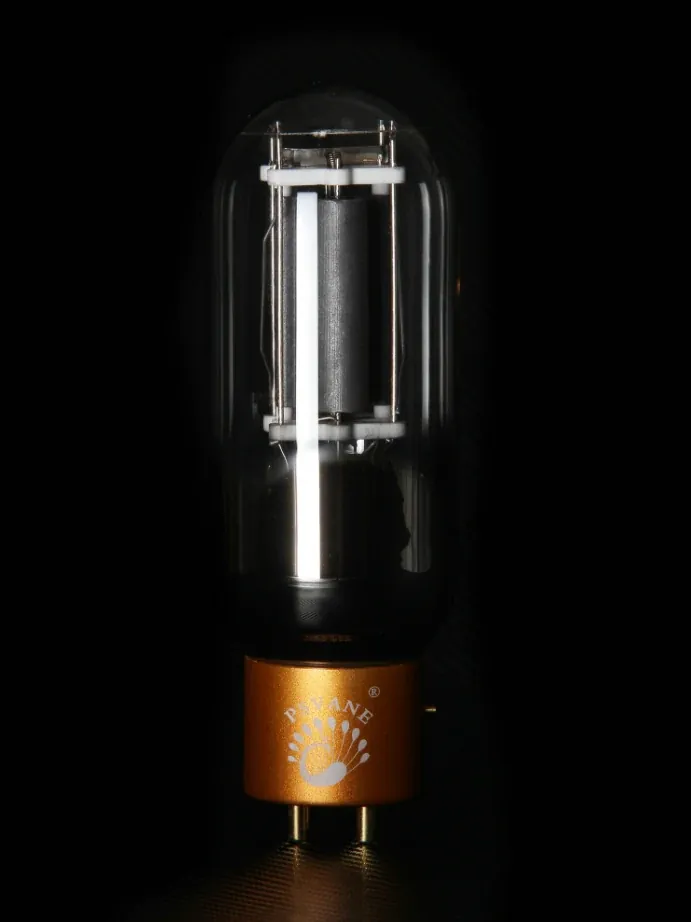

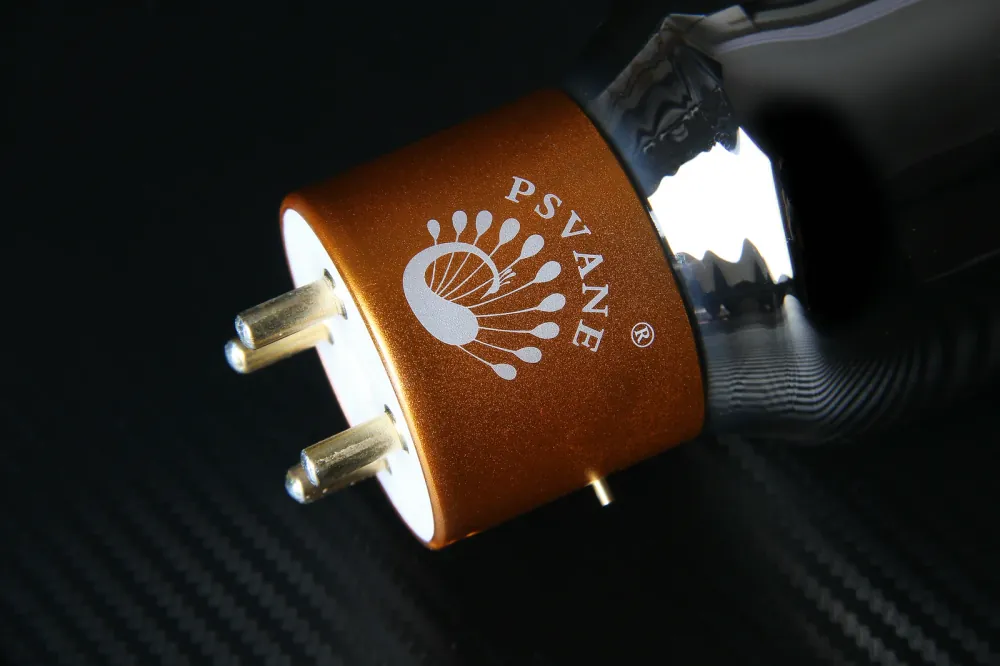

211-TII
39.9-399
Reference price range. Contact us to confirm your configuration, quantity and quotation.
Explore the product information below, or contact our team for availability and a quotation.
Request a quoteView original product informationProduct details
Filament Voltage:
Uf..................................................... 10 V
Filament Current:
If..................................................... 3.25 A
Uf..................................................... 10 V
Filament Current:
If..................................................... 3.25 A
Inter-electrode Capacitance:
Input Capacitance:..................................... 6 pF
Output Capacitance:................................... 5.5 pF
Cross Capacitance:.................................... 14.5 pF
Input Capacitance:..................................... 6 pF
Output Capacitance:................................... 5.5 pF
Cross Capacitance:.................................... 14.5 pF
Static Parameters:
Anode Voltage (Ua):................................... 1250 V
Grid Voltage (Ug):.................................... -70 V
Anode Current (Ia):................................... 100 mA
Transconductance (Gm):.............................. 3.8 mA/V
Amplification Factor (u) (when Ia = 75 mA):..... 12
Load Resistance (RL):................................ 7 kΩ
Output Power (Pout):.................................. 10 W
Anode Voltage (Ua):................................... 1250 V
Grid Voltage (Ug):.................................... -70 V
Anode Current (Ia):................................... 100 mA
Transconductance (Gm):.............................. 3.8 mA/V
Amplification Factor (u) (when Ia = 75 mA):..... 12
Load Resistance (RL):................................ 7 kΩ
Output Power (Pout):.................................. 10 W
